ELECTRONICS
Download
Product Catalog |
| |
|
| |
1. DC
Gated Pulse Generator (PWM) |
| |
HHO Technology also know as Water Fuel Technology is all
about breaking the water molecule into Hydrogen and Oxygen using
the electrical energy.
Advanced Electrolysis technique used by researchers
like Stan Meyer used pulsed DC current of 12VDC. It is proven by many
researchers that square wave pulsed current helps to reduce heat
generation during the electrolysis making the HHO gas production more
efficient.
DC Gated Pulse Generator is not an ordinary Pulse
Width Modulator (PWM). Unlike PWM it gives you a complete control to
vary the frequency, duty cycle, Amp and nature of wave form of the
current being fed to the cell. It is the heart of a HHO gas generator
cell. This device
This
device is a must for your HHO research work. It gives a Square Wave
Pulse output with the flexibility to vary the frequency, duty cycle and gating.
This is a modified replication of Stan Meyer's Pulsing Circuit. For large
orders, pls. write us an email.
|
| |

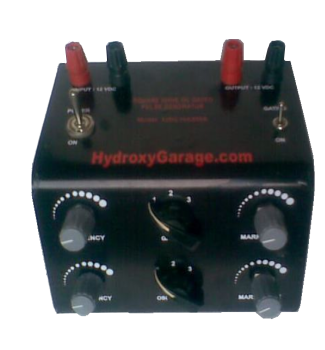

Model 1 |
|
12DC06A500A (Box) |
| |
|
|
 |
Price
:
US$ 114.5 / 1 unit
Shipping
: $25 extra
|
Price
:
US$ 343.5 for 3 units
FREE
Shipping
(value $75)
|
|
Delivery : 1 - 2
Weeks |
| |
Description |
|
DC Gated
Pulse Generator (PWM) for Water Fuel Cell Research. This device is
a modified replication of Stan Meyer's Pulsing Circuit. It takes 12VDC
supply from a car's battery and outputs 12VDC, 6A max, Square wave
pulsed current. Frequency and duty cycle of the output current is
variable making it convenient to adjust for the best performance.
Frequency can be varied from 0 - 500 KHz and Duty Cycle from 0 - 100%. |
|
Features |
|
Input :
12VDC |
|
|
|
Output :
12VDC, 6 Amp max. |
|
|
|
Freq :
Variable from 0 to 500 KHz. (Oscillator) max. |
|
|
|
Duty Cycle
: 0 - 100% |
|
|
|
Gating :
Selectable |
|
|
|
Box unit enclosure
is made from metal. |
| |
|
|
Module is made of Acrylic front panel rested on a metal base plate.
|
| |
Protection |
|
Fuse
Protected against over current >6 A. |
| |
|
|
Protected
against back EMF when connected with an inductive load. |
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
Model 2 |
|
12DC10A500B (Module) |
| |
|
|
 |
Price
:
US$ 174.5 / 1 unit
Shipping
: $25 extra
|
Price
:
US$ 523.5 for 3 units
FREE
Shipping
(value $75)
|
|
Delivery :
1 - 2 Weeks |
| |
Description |
|
DC Gated
Pulse Generator (PWM) for generating Square Wave Pulse.
This device is also
a modified replication of Stan Meyer's Pulsing Circuit. It takes 12VDC
supply from a car's battery and outputs 12VDC, 10A max, Square wave
pulsed current. Frequency and duty cycle of the output current is
variable making it convenient to adjust for the best performance.
Frequency can be varied from 0 - 500 KHz and Duty Cycle from 0 - 100%.
|
|
Features |
|
Input :
12VDC |
|
|
|
Output :
12VDC, 10 Amp max. |
|
|
|
Freq :
Variable from 0 to 500 KHz. (Oscillator) max. |
|
|
|
Duty Cycle
: 0 - 100% |
|
|
|
Gating :
Selectable |
|
|
|
Box unit enclosure
is made from metal. |
| |
|
|
Module is made of Acrylic front panel rested on a metal base plate.
|
| |
Protection |
|
Fuse Protected
against over current >10 A. |
| |
|
|
Protected
against back EMF when connected with an inductive load. |
|
|
|
Has in-built Fan
and Heat-sink to protect circuit. |
|
|
|
|
| |
|
|
This
device is a must for your HHO research work. It gives a Square Wave
Pulse output with the flexibility to vary the frequency, duty cycle and gating.
This is a modified replication of Stan Meyer's Pulsing Circuit.
For large orders,
pls. write us an email. |
| |
|
|
|
|
|
|
|
| |

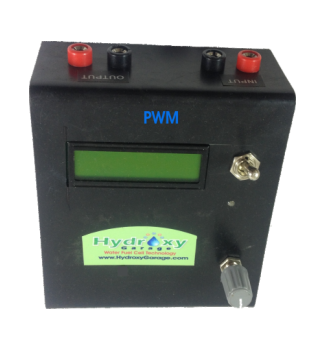

Model 3 |
|
124DC30A1000A (Box) |
124DC30A1000B (Module) |
|
|
|
|
|
|
|
Orders NOT ACCEPTED at this
time. |
|
|
|
|
| |
Description |
|
DC Gated
Pulse Generator (PWM) for generating Square Wave Pulse |
|
|
|
Input :
12-24 VDC |
|
|
|
Output :
12-24 VDC, 30 Amp max. |
|
|
|
Freq :
Variable from 0 to 1 MHz (1000 KHz). (Oscillator) max. |
|
|
|
Control
for Duty Cycle Adjustments
: 0 - 100% |
|
|
|
Gating :
Selectable |
|
|
|
LCD
Display ( Volt, Amp, Freq, Temp., Duty Cycle) |
|
|
|
Current
Limiting to prevent thermal runaway. |
| |
|
|
Heatsink
and Fan for thermal management of circuit for safer operation. |
| |
|
|
Microcontroller based design for very high capacity HHO Generator
Systems for Car, Trucks, Boats, DG Set, etc... |
|
|
|
|
| |
Protection |
|
Microcontroller based current and temperature limiting. |
| |
|
|
Protected
against back emf when connected with an inductive load. |
|
|
|
A most advanced PWM designed for HHO research. |
| |
|
|
|
|
2.
High Voltage Power Supply |
|
|
|
Supplying high voltage electrical energy is an another
approach to break the water molecule into Hydrogen and Oxygen. Using the
output of DC Gated Pulse Generator (Pulsed DC Current) to feed into a
High voltage Power supply is a viable option many researchers would like
to try at. High Voltage Power Supply is
specially designed keeping Stan Meyer's Voltage Intensifier Circuit in
mind and adding our own research inputs. We working hard to make it
successful for past several months. Any inputs or help from power
electronics engineers specialized in high voltage is highly appreciated.
|
| |
Product: |
|
DC - DC
Converter |
|
|
|
|
| |
Model 1 |
|
125KDC100A
(Box) |
|
|
|
|
|
|
|
Orders NOT ACCEPTED
at this time. |
|
|
|
|
| |
Description |
|
For HHO
research at High Voltage and variable Freq. |
| |
|
|
DC Power
Supply which converts Battery Voltage 12VDC to 5,000 VDC. |
|
|
|
Input : 12
VDC |
| |
|
|
Output :
Variable from 2500 VDC to 5000 VDC, 0.15 Amp max. |
|
|
|
Freq :
Variable from 0 to 100 KHz. max. |
| |
|
|
|
|
|
|
|
| |
Model 2 |
|
1210KDC100A |
|
|
|
|
|
|
|
Orders NOT ACCEPTED
at this time. |
|
|
|
|
| |
Description |
|
For HHO
research at High Voltage and variable Freq. |
| |
|
|
DC Power
Supply which converts Battery Voltage 12VDC to 10,000 VDC. |
|
|
|
Input : 12
VDC |
| |
|
|
Output :
Variable from 7000 VDC to 10000 VDC, 0.10 Amp max. |
|
|
|
Freq :
Variable from 0 to 100 KHz. max. |
|
|
|
|
|
|
3.
Sensors (Oxygen, EFIE, MAPF) - Under development |
|
TERMS OF SALE :
# Mode of Payment : We accept payment thru
PayPal and Bank Transfer. Pls. ask for Proforma Invoice before ordering.
# Warranty : Free Replacement if returned within 7 Days from delivery. Shipping
for returns to be paid by customer. Refunds attract 10% service charges.
# Returns Warranty applicable only to units returned UNTEMPERED.
# Please
verify / ask for Specifications, Prices, Availability/ Delivery before placing
an order.
# Shipping (FEDEX) : Extra @ US$ 60 + US$ 10 per Kg. For large order, inquire with FEDEX
or ask for an estimate.
# Shipping (Mail ) : Extra @ US$ 25 per unit for Electronics and Accessories.
US$ 75 per unit for HHO cell which includes Cell Housing + Electrodes. For large order,
ask
for an estimate.
# We also undertake Design, Development, Prototyping & Manufacture as per
customer's requirement. Please write to us for more details.
|
|
|
|
|
|
